Output history to CSV
Not available nor applicable with SkyGuide
When output history to CSV is enabled a file called FocusingHistory.csv is created in the working folder.
Each iteration of the guiding loop correspond to a row in the file
The file name i.e. FocusingHistory_v3_3_7067_38828.csv also contain the full version number to make a different file per version. This allows changing the structure of the file in a new version without any format conflict with the files already captured from older versions.
This file is very useful to analyze what happened during the full capture session, helping for support or to review your auto-focusing performances.

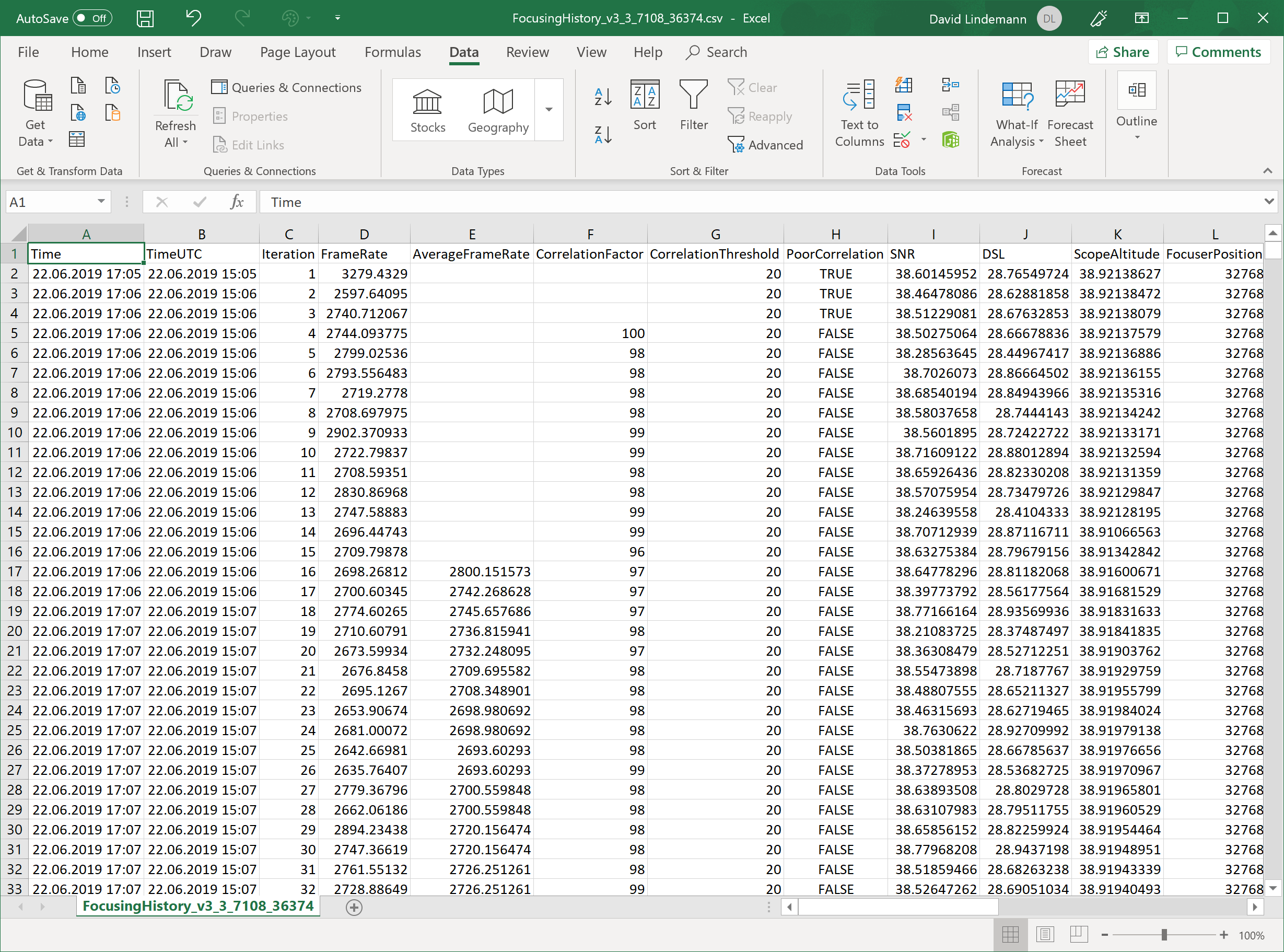

Using Excel is it easy from the data any relevant plots.
Column name |
Meaning |
Time |
Local timestamp. |
TimeUTC |
UTC timestamp. |
Iteration |
Corresponding focusing loop iteration number. |
FrameRate |
Time in milliseconds of one focusing loop iteration. |
AverageFrameRate |
Average time in milliseconds of all focusing loop iterations. |
CorrelationFactor |
Percentage of correlation (0% to 100%) between the current guider camera output frame and the guider reference frame. |
CorrelationThreshold |
Defines the minimum value before suspending focusing. |
PoorCorrelation |
True if the correlation factor is below the correlation threshold. Otherwise False. |
SNR |
Signal-to-Noise ratio of the stacked frame in dB. |
DSL |
Dynamic range ratio of the stacked frame in dB. |
ScopeAltitude |
The altitude of the field pointed by the telescope above the horizon in degrees. |
FocuserPosition |
The absolute focuser position in steps. |
FocuserCFZPredicateUpperBound |
The CFZ upper bound predicate in steps. |
FocuserCFZPredicateBestFocus |
The CFZ best focus predicate in steps. |
FocuserCFZPredicateLowerBound |
The CFZ lower bound predicate in steps. |
FocuserCFZMin |
The CFZ minimum value in steps |
FocuserCFZMax |
The CFZ maximum value in steps |
FocuserTemperature |
The temperature of the focuser in celsius |
Filter |
The name of the filter currently selected in the filter wheel. Empty if there is no filter wheel. |
Reference |
The reference relative roundness registered to the current filter. Allows to compensate filters that are not parfocal. |
Correction |
The correction is steps. |
Kc |
The system gain in micron per % |
Ks |
The system gain in % per micron |
PoleValue |
The regulator pole |
MeanX |
The correlation centroid peak coordinate on X axis in pixels. |
MeanY |
The correlation centroid peak coordinate on Y axis in pixels. |
StdevX |
The standard deviation along the X axis of the focusing correlation peak in pixels. |
StdevY |
The standard deviation along the Y axis of the focusing correlation peak in pixels. |
MajorStdev |
The standard deviation along the major axis of the focusing correlation peak in pixels. |
MinorStdev |
The standard deviation along the minor axis of the focusing correlation peak in pixels. |
NoCorrection |
True if no correction has been sent to the focuser relay. Otherwise False. "No correction" can happen for multiple reason such as error protection, minimum move thresholds, ... |
Absolute |
The absolute roundness (ARDN) in percent. |
AbsoluteAverage |
The average absolute roundness (AARDN) in percent. |
AbsoluteAngle |
The absolute roundness angle in degrees. |
RelativeMin |
The relative roundness minimum value in percent. |
RelativeMax |
The relative roundness maximum value in percent. |
Relative |
The relative roundness (RRDN) in percent. |
RelativeAverage |
The average relative roundness (ARRDN) in percent. |
